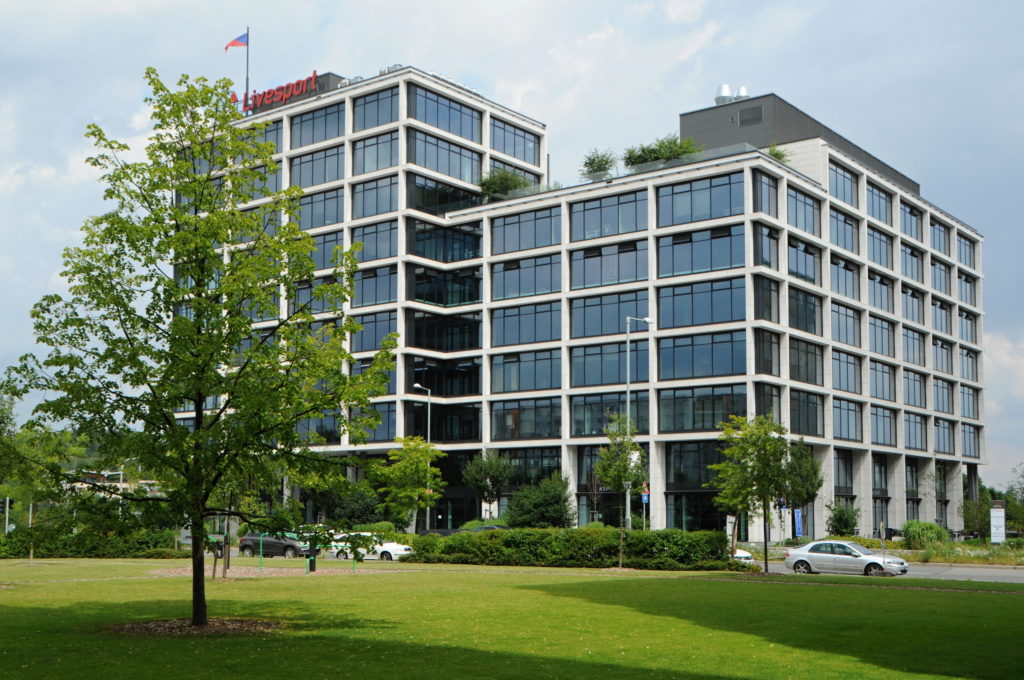

Ventilated facades
Facade significantly affects the overall appearance of the building and its functional characteristics. Ventilated facades, due to its design and technical features are becoming a popular choice of architects.
For more than twenty years of our existence we have gained innumerable experiences and we can provide full support for architects in this field. From the initial phase of the project to the final realization. This enable us that the final result is carried out as economically as possible while maintaining the required visual properties of the realized object.
To meet a wide range of architectural requirements, we can offer a lot of visual material with a variety of technical characteristics. We offer materials such as ceramics, cement board or enamelled glass.
More specific information can be found in the tab visible materials
Basic information
Ventilated facade is consisted from following components:
- basic aluminium support system for easy rectification
- thermal insulation mineral wool, manufacturer designed for ventilated facades
- air gap
- cladding boards
Properties of ventilated facades:
- ventilation gap between the external wall and a peripheral wall (or inserted thermal insulation) guarantees the optimum moisture regime facades external walls and minimize building heat load in summer
- using the appropriate cladding boards and high-quality support system based on aluminum alloys, are suspended ventilated facades permanently resistant to weather – the life cycle of the facade and the building is almost identical
- dry assembly allows the all-year realization of ventilated facade cladding
- is possible to use an appropriate thermal insulation to reduce building operating costs
- due to the variability and technical capabilities of supporting suspension systems can be overcome problematic flatness of surface and carry curved facades simultaneously with elimination effects of thermal expansion on the facade
- systems enable both visible and cover mounting cladding slabs to the substructure
- meet the requirements for fire resistance in accordance with ČSN 73 0804
- size of the cladding slabs is limited only by manufacturing capabilities. Almost endless choice of colors and structural variations and different surfaces allows the a wealth of architectural design of any object.
- easy replacement of damaged cladding slabs as disassembly and assembly for changing the facade is easy
- cladding requires minimal claim on the maintenance.
Visible materials
Sintered ceramics Mirage, Imola
Glassconcrete slabs Rieder
Brick panels Faveton
Enamelled glass
HPL desks
Předchozí
Další
Sintered ceramics Mirage, Imola
Sintered ceramic is a material which is characterized by low water absorption and high-strength. Which makes this type of ceramics applicable to both – exterior and interior. The structure of this material is the same thickness and colour throughout the body. Innovative production process allows following the latest design trends. Technical parameters of this type of ceramic tiles can exceed natural stones in some cases.
Předchozí
Další
Glassconcrete slabs Rieder
It is a large format glass-concrete slab reinforced with glass fibers. Thus produced slabs are characterized by high strength at a thickness of just 13mm. Slabs can be surface treated and are available in wide range of colors.
Předchozí
Další
Brick panels Faveton
Faveton tiles are made from a special type of porcelain stoneware. Production is carried out by pulling the base material over a mold and then firing at high temperatures. Due to this production process, the tiles have low water absorption, chemical resistance, frost resistance and resistance to mechanical stress. The tiles are available in several finishes and a wide variety of shades. Some tiles have antigrafitti treatment.
Předchozí
Další
Enamelled glass
For facade cladding is used enamelled glass with full or only partial prints, glass is always hardened. These glasses are characterized by higher strength and resistance to thermal shock, width variety of shades and relative freedom of format. The material is very popular especially as a design element of objects.
HPL desks
HPL desks are large format panels, designed for use in both – exterior and interior. These boards are manufactured in a wide range of decors. They are characterized mainly wide color range, resistance to climatic conditions, easy workability and maintenance.
